Constellation Design Examples (page 4)
|
The following two designs were generated using the
"Periodic Coverage Constellation Design / Circular Orbits"
module.
Constellation with circular orbits (example
4.1) provides periodic coverage
with a maximum gap of less than 2 hours to any
point on Earth at a minimum ground elevation angle of
12o.
Constellation with circular orbits (example 4.2)
provides periodic coverage with a maximum gap of 2 hours to
any point on Earth at a minimum ground elevation angle of 20o.
|
Example 4.1.
|
Constellation Parameters
|
Values
|
|
Number of Satellites |
7 |
|
Orbit Inclination (deg) |
80
|
|
Altitude of Perigee (km) |
570.0
|
|
Altitude of Apogee (km) |
570.0
|
|
Number of Planes |
7
|
|
Number of Satellites per Plane |
1
|
| RAAN
Increment (deg) |
51.429
|
| Phase
Increment (deg) |
308.571 |
|
|
|

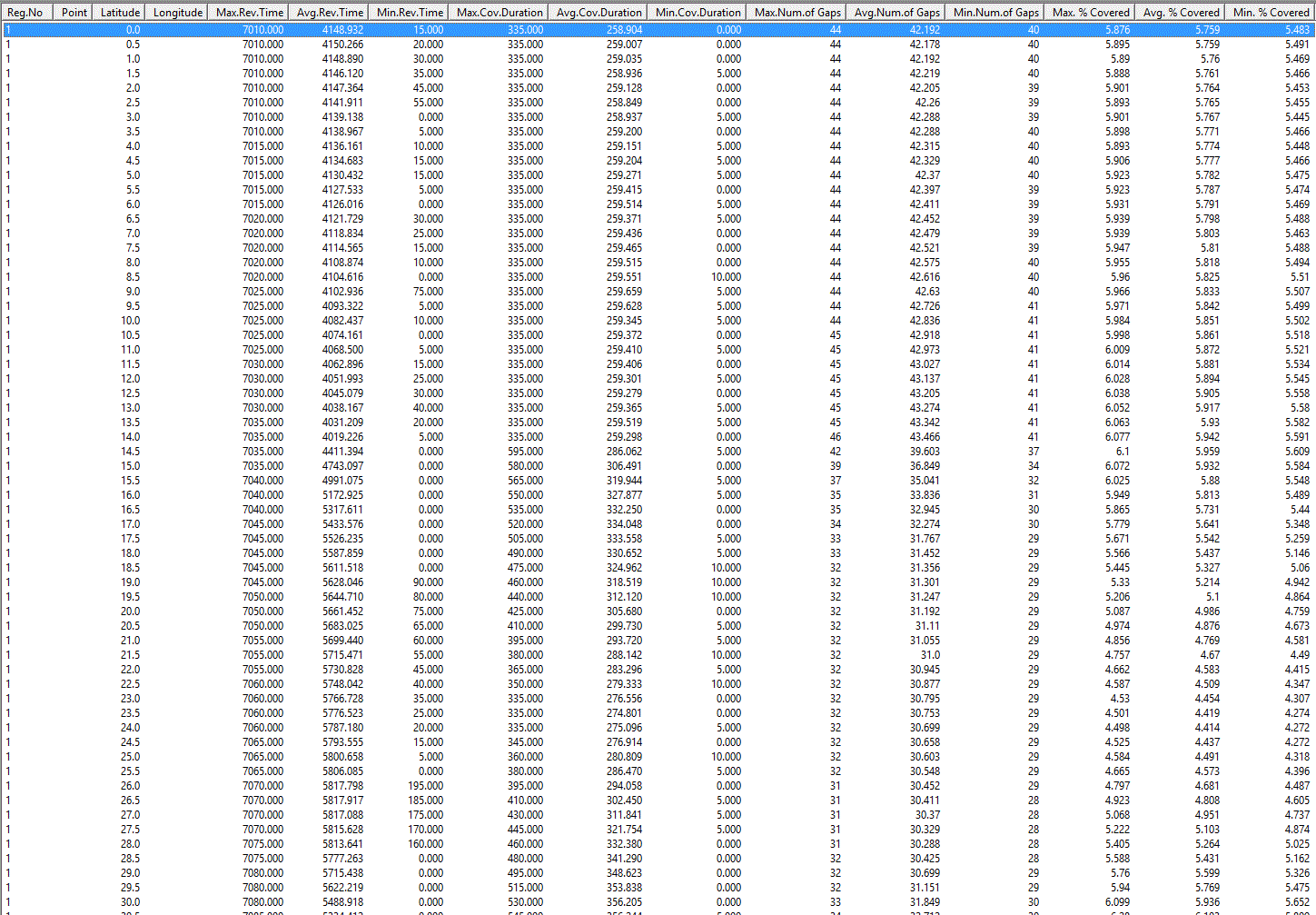

Example 4.2.
|
Constellation Parameters
|
Values
|
|
Number of Satellites |
7 |
|
Orbit Inclination (deg) |
80
|
|
Altitude of Perigee (km) |
570.0
|
|
Altitude of Apogee (km) |
570.0
|
|
Number of Planes |
7
|
|
Number of Satellites per Plane |
1
|
| RAAN
Increment (deg) |
51.429
|
| Phase
Increment (deg) |
308.571 |
|
|
|
|
