Overview of SC Modeler 4.0

SC Modeler software was developed for the conceptual design, visualization, and analysis of satellite constellations. It was written for aerospace engineers and other professionals involved in the development of space-based communications systems, Earth observation systems, and navigation systems.

SC Modeler provides an integrated modeling environment and all the necessary functionality for designing and visualizing a satellite constellation and carrying out many tasks of constellation analysis, including visibility studies and analysis of the geometry of communication links.

SC Modeler

SC Modeler offers the following options for designing a new satellite constellation or defining the orbital parameters of an existing one:
- specifying orbital parameters of satellites or satellite groups using the Constellation Editor tool;
- importing TLE data (example);
- generating constellation designs for continuous or periodic coverage using the Constellation Design modules (examples).

SC Modeler includes the Two-Body Keplerian, J2 Perturbations (no drag effects), and SGP4/SDP4 orbit propagators. (more)

You can create a static or animated 2D or 3D view of the constellation and examine it interactively by mouse movements: change the azimuth and elevation of the viewpoint, rotate or move the view, move the ground stations, and zoom in or out. The viewpoint can be placed above a satellite or ground station.

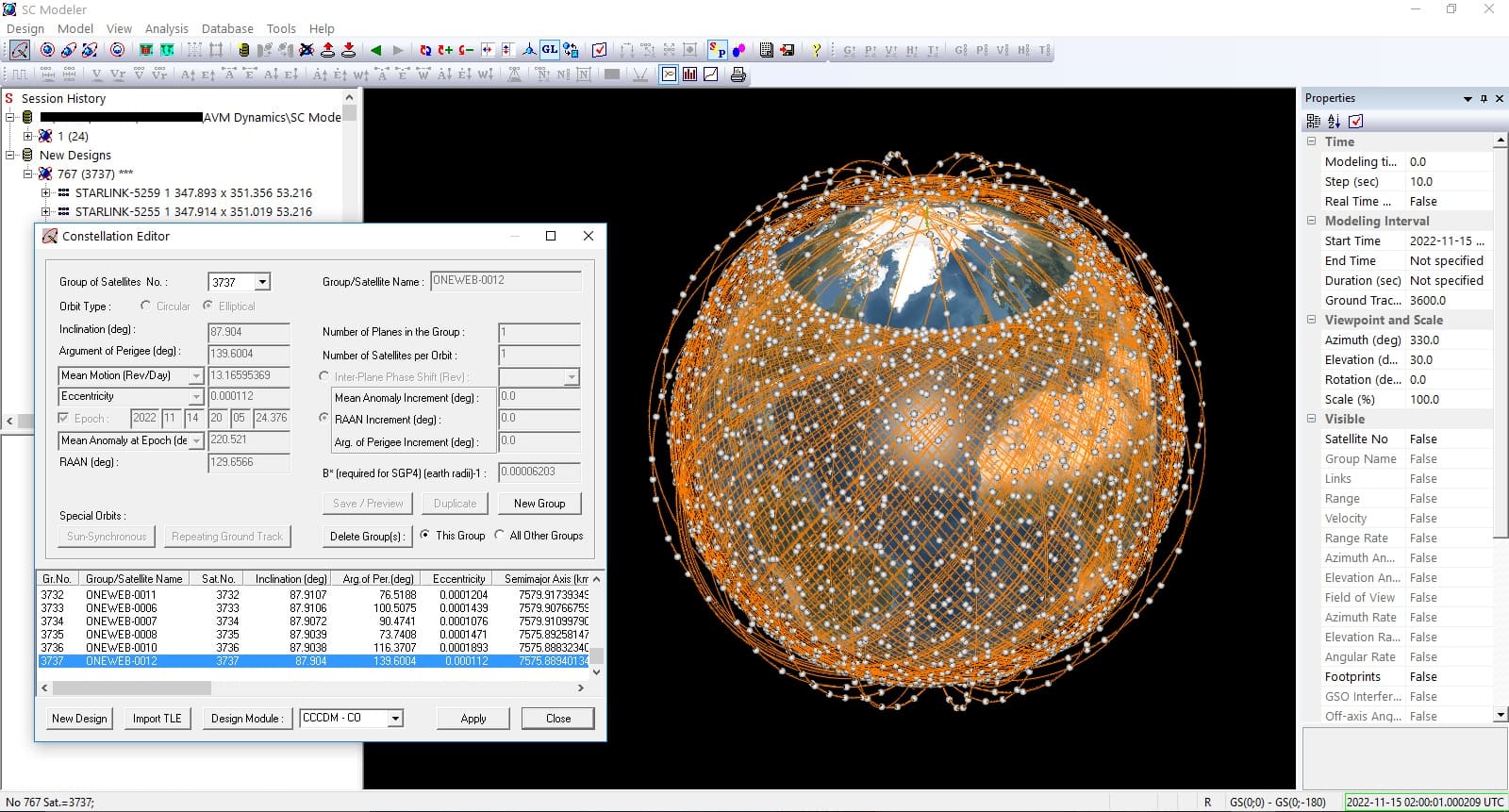

Constellation Editor

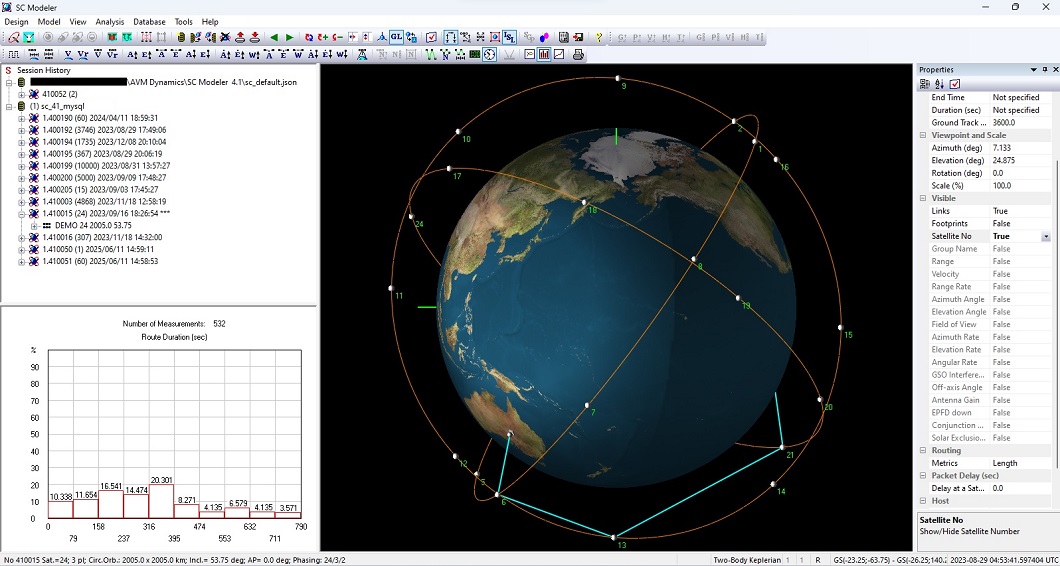

You can visualize and perform analysis of all intersatellite links, all communication links available to a specific ground station or satellite, or analyze a chain of communication links between any pair of network nodes: "ground station-ground station," "ground station-satellite," "satellite-satellite."

SC Modeler uses a routing algorithm that identifies the path between the source node and the destination node based on the selected routing policy.

During simulations, either in "fast" or real-time mode, the program generates and continuously refreshes charts, histograms (distributional and cumulative), and textual reports characterizing the network topology, properties of active communication links, and revisit characteristics:
- number of potential connections available to a ground station or satellite,
- total path delay, which includes propagation delays, the user-specified value of the delay at a satellite node, and network access delay,

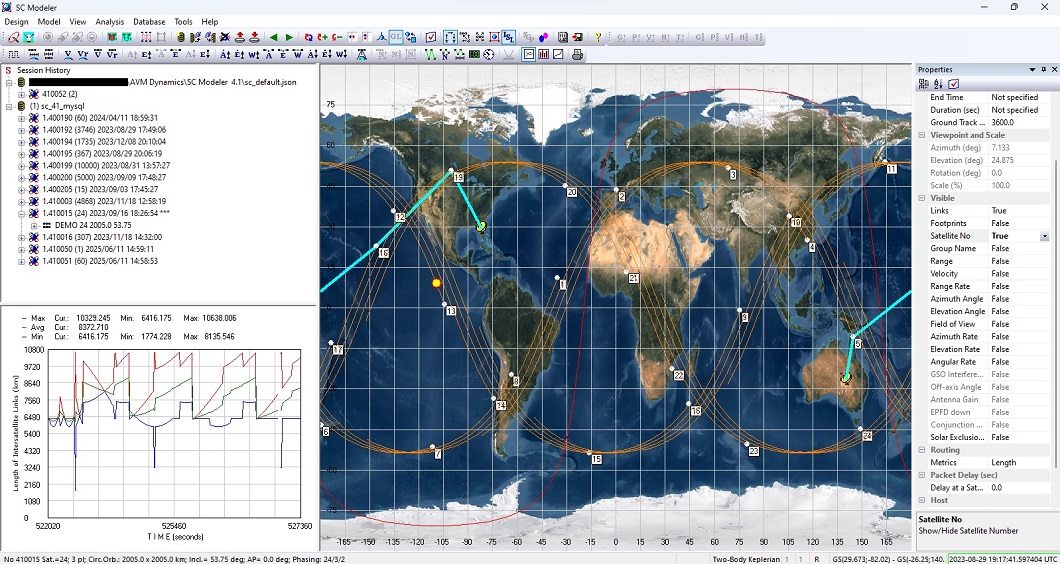

- length of uplinks, downlinks, and intersatellite links,
- intersatellite range rate and relative velocity,
- ground- or satellite-based elevation and azimuth of uplinks, downlinks, and intersatellite links,

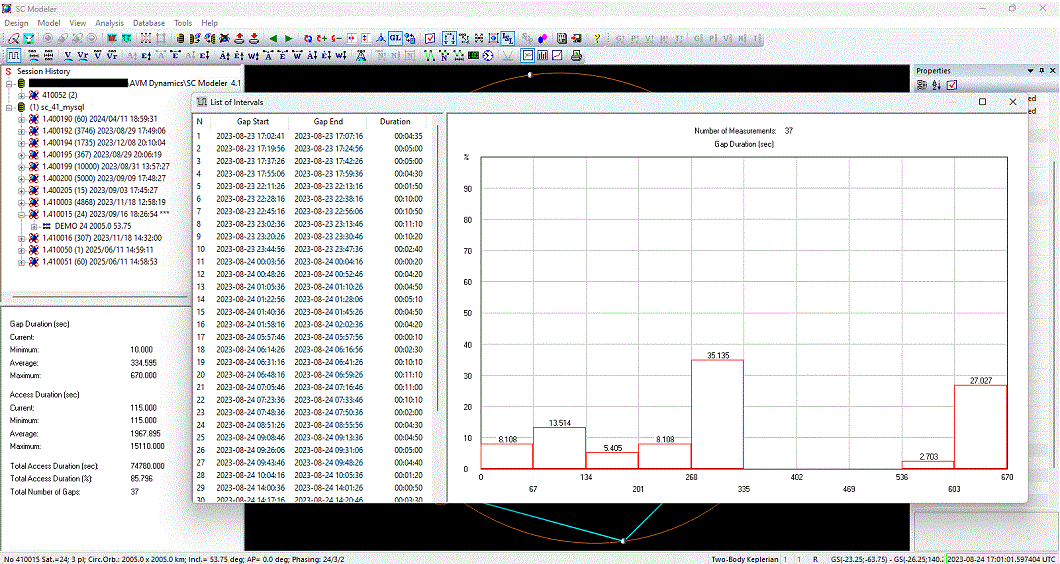

- list of access intervals or the list of gaps,
- duration (maximum, minimum, average, and current), count, and percentage of access intervals and service gaps.

SC Modeler
SC Modeler
You can determine visibility intervals when the required number of satellites (either the exact number or within the specified range) is available to a ground station or satellite.
The software includes a set of productivity tools that offers an efficient and convenient way of managing model properties, constellation parameters, and design constraints.
The Access Constraints tool allows you to specify the following constraints for uplinks and downlinks: ground elevation angle, satellite sensor's field of view, altitude, range, range rate, satellite-based azimuth and elevation, azimuth rate, elevation rate, and angular rate. A conic or rectangular field of view can be considered. You can specify the same constraints for the whole constellation or any group of satellites, or you can set individual constraints for each.
For intersatellite links, you can specify the minimum clearance above the Earth and the maximum propagation range. The total number of hops across the satellite for the whole path can be limited or set to 0, or intersatellite links can be disallowed.
For a constellation design, you can specify multiple variants of the network topology (this will require the Network Topology tool) and access constraints. You can save the related configuration parameters to an application-generated database.
The Session History tool allows you to navigate easily through constellation designs created in the current work session or restored from a database. You can activate any available constellation by double-clicking the desired item. Related connectivity rules and access constraints for the selected constellation will be restored from the database, and the constellation image and analysis results will be refreshed immediately.
Data sets produced during analysis can be saved in a fixed-width file format, making it easy to import them into a spreadsheet or a database program for further research.

Add-On Modules

The software includes a set of modules designed to provide an efficient solution to the most challenging constellation design and analysis tasks.

Constellation Design Modules
Constellation Design modules implement highly optimized search algorithms capable of producing an efficient constellation design for global or zonal continuous or periodic coverage in a matter of seconds.

The Continuous Coverage Constellation Design/Circular Orbits module allows you to consider symmetric constellations (known as "Walker delta" constellations) and "streets of coverage" constellations with polar or inclined orbits (examples).

The Continuous Coverage Constellation Design/Advanced Options module generates kinematically regular patterns with circular or elliptical orbits where all orbits have the same altitude, inclination, and argument of perigee. The generated constellation design should ensure the continuous availability of a specified number of satellites above the region of interest (examples).

The Continuous Coverage Constellation Design/Advanced Options Plus module provides all the capabilities of the Continuous Coverage Constellation Design/Advanced Options module. In addition, this module generates kinematically symmetric constellation design patterns, which, in certain cases, perform better than "streets of coverage" and "Walker delta" constellations (example).

The Periodic Coverage Constellation Design/Circular Orbits module generates kinematically regular patterns with circular orbits ("Walker delta" constellations) that provide the required maximum revisit time for given latitude bounds (examples).

Constellation Design modules can help you to minimize the number of satellites required by the constellation if orbital inclination and altitude are specified. Alternatively, you can minimize the altitude of orbit for a given number of satellites and the orbit inclination.

Other inputs of the design task are:
coverage area - entire Earth or latitude bounds,
constellation design constraints - number of orbital planes and number of satellites per plane (min and max),
access constraints - minimum ground elevation angle, maximum satellite sensor's field-of-view (conical half-angle), maximum ground station to satellite propagation range.

Symmetric Constellation with circular orbits ("Walker Delta")
"Streets-of-Coverage" Constellation
Coverage Analysis Modules
The Continuous Coverage Analysis module allows you to determine, for a given constellation, the minimum number of satellites that will be available at all times to each point at given latitudes. An analyzed constellation can include any combination of satellites or groups of satellites with the same orbit altitude and inclination. Each such subconstellation can be analyzed separately. You can specify individual access constraints for any group of satellites. The module generates the Coverage by Latitude tabular report and displays the results of analyses on a world map, with graphics depicting the various levels of coverage.
Coverage Analysis
The Periodic Coverage Analysis module allows you to undertake statistical analyses of visibility intervals for user-defined geographical regions. You can supply the exact locations of points and specify latitude bounds, or you can use the 2D map to define custom regions. The module determines visibility intervals for each point of the coverage grid and creates an interactive report that shows the revisit time (max/min, average), coverage time, number of gaps, and total coverage duration (%) measured over the entire simulation interval, etc. You can determine visibility intervals when the specified number of satellites is available to grid points. The results can be grouped by latitude and by region. The report includes a histogram showing the distribution of durations of visibility intervals (or gaps) for a selected set of points. Coverage Analysis
Constraints Analysis Module
The Constraints Analysis module allows you to determine latitude-dependent values of the minimum ground elevation angle, maximum satellite sensor's field-of-view, and maximum ground station to satellite propagation range, all of which have to be maintained by the generated constellation to provide the desired type of continuous coverage (single, double, triple, etc.) at specified latitudes.
Constraints Analysis
Network Topology Tool
The Network Topology tool offers unmatched capabilities for configuring and manipulating the topology of a large satellite network. With this tool, you can create a set of connectivity rules by specifying combinations of the following parameters:
- number of intraplane links, which connect a satellite to its nearest neighbors within the same plane,
- the relative position of orbits of satellites connected via interplane links (relative plane number),
- number of interplane links, which connect a satellite to its nearest neighbors in co-rotating or counter-rotating planes,
- latitude range of a subsatellite point when intersatellite links of a given type are active,
- the group of satellites (subconstellation) for which the specified set of links is valid.
For any connectivity rule, you can specify a time interval during which the rule is valid.
Satellite Network
If these connectivity rules cannot completely define the network structure, it can be configured further by activating or eliminating potential connections with the Matrix Editor. This interactive tool displays the current connectivity matrix allowing you to manage (activate or eliminate) network connections at various levels: between two satellites, between subconstellations, between satellites grouped in orbital planes, between satellites and ground stations, etc.
For any group of network connections, you can specify one or many time intervals during which the connections are active or inactive.
The routing algorithm supports four routing policies:
- routing policy that minimizes the number of hops across the satellite (this policy is part of the base product and is selected by default);
- routing policy that minimizes the number of hops (first) and the total length of the path from the source node to the destination node (second);
- routing policy that minimizes the total length of the path from the source node to the destination node;
- routing policy that minimizes the total delay, which includes the propagation, transmission, queuing, and processing delays along the path.
Interference Analysis of GSO and non-GSO satellites
The Interference Analysis option evaluates the impact of operational restrictions, protecting the existing GSO (geostationary orbit) satellites from radio interference, on the coverage performance of a non-GSO constellation of communication satellites. The analysis is based on evaluating, at each time step, the separation (off-axis) angle - the angle between the line from the ground station to the GSO satellite and the line from the ground station to a non-GSO satellite. You can specify the minimum GSO separation angle constraint and position of GSO satellites and then use either the base product or the Periodic Coverage Analysis module to estimate the impact of the constraint on coverage statistics, including coverage gaps and accesses.
Satellite Network
EPFD Analysis
The Equivalent Power Flux Density (EPFD) Analysis option allows you to determine the power levels produced by non-GSO fixed-satellite service (FSS) systems and use these results for examining non-GSO system compliance with the limits specified in Article 22 of the Radio Regulations. The current version allows you to consider the "EPFD(down)" interference case in which the interference from the non-GSO satellites into a GSO ground station is evaluated. (more)
EPFD Analysis
Network Traffic Analysis Module
The Network Traffic Analysis Module estimates traffic volume on each link (intersatellite and "ground station-satellite") of a satellite network for a selected routing policy at a given time. (more)

System Requirements

Your computer must meet the following requirements:
Hardware/Software Requirements
Processor Pentium 1 GHz or faster
Memory (RAM) 1 GB minimum
Hard disk space 100 MB
Monitor resolution 1280x800 or higher
Color palette 16-bit - 32-bit color
Operating system Microsoft Windows (32-bit or 64-bit) 11 / 10 / 8.1 / 8 / 7 / Vista / XP SP2
Mouse Microsoft Mouse or compatible pointing device.
USB Port Free USB port.
Virtual environment not supported.
