Constellation Design Examples (page 2)
|
|
The following two designs were generated using the
"Continuous Coverage Constellation Design - Advanced Options"
module. Constellation with circular orbits (example
2.1) provides continuous coverage
with a minimum of four visible satellites to any
point on Earth at a minimum ground elevation angle of
0o.
Constellation with elliptical orbits (example 2.2)
provides continuous coverage with a minimum of four
visible satellites to
any point within +20o..+90o
latitude at a minimum ground elevation angle of 0o.
|

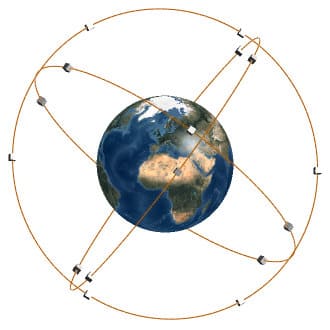

Example 2.1.
|
Constellation Parameters
|
Values
|
|
Number of Satellites |
18 |
|
Orbit Inclination (deg) |
55.0
|
|
Altitude of Perigee (km) |
8300.0
|
|
Altitude of Apogee (km) |
8300.0
|
|
Number of Planes |
3
|
|
Number of Satellites per Plane |
6
|
| RAAN
Increment (deg) |
120.0
|
| Phase
Increment (deg) |
20.0 |
|
|
|

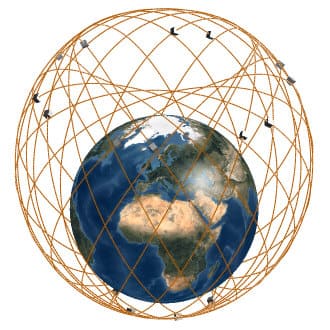

Example 2.2.
|
Constellation Parameters
|
Values
|
|
Number of Satellites |
18 |
|
Orbit Inclination (deg) |
63.4
|
|
Altitude of Perigee (km) |
1000.0
|
|
Altitude of Apogee (km) |
7200.0
|
|
Number of Planes |
18
|
| Argument
of Perigee (deg) |
270.0
|
| RAAN
Increment (deg) |
20.0 |
| Phase
Increment (sec) |
Period/3 |
|
|
|
|
